PERENNIAL GARDEN

Floradrain® FD 40-E

Modern residential buildings with rooftop gardens near a body of water, under a partly cloudy sky.

The ideal system for blooming perennials and ornamental grasses

A versatile, easy to install green roof system designed for growing a wide variety of perennials and ornamental grasses.

Features:

  • Attractive and versatile green roof system

  • High drainage and water retention capacity

  • Easy to combine with hard surfacing

  • Quick and easy installation

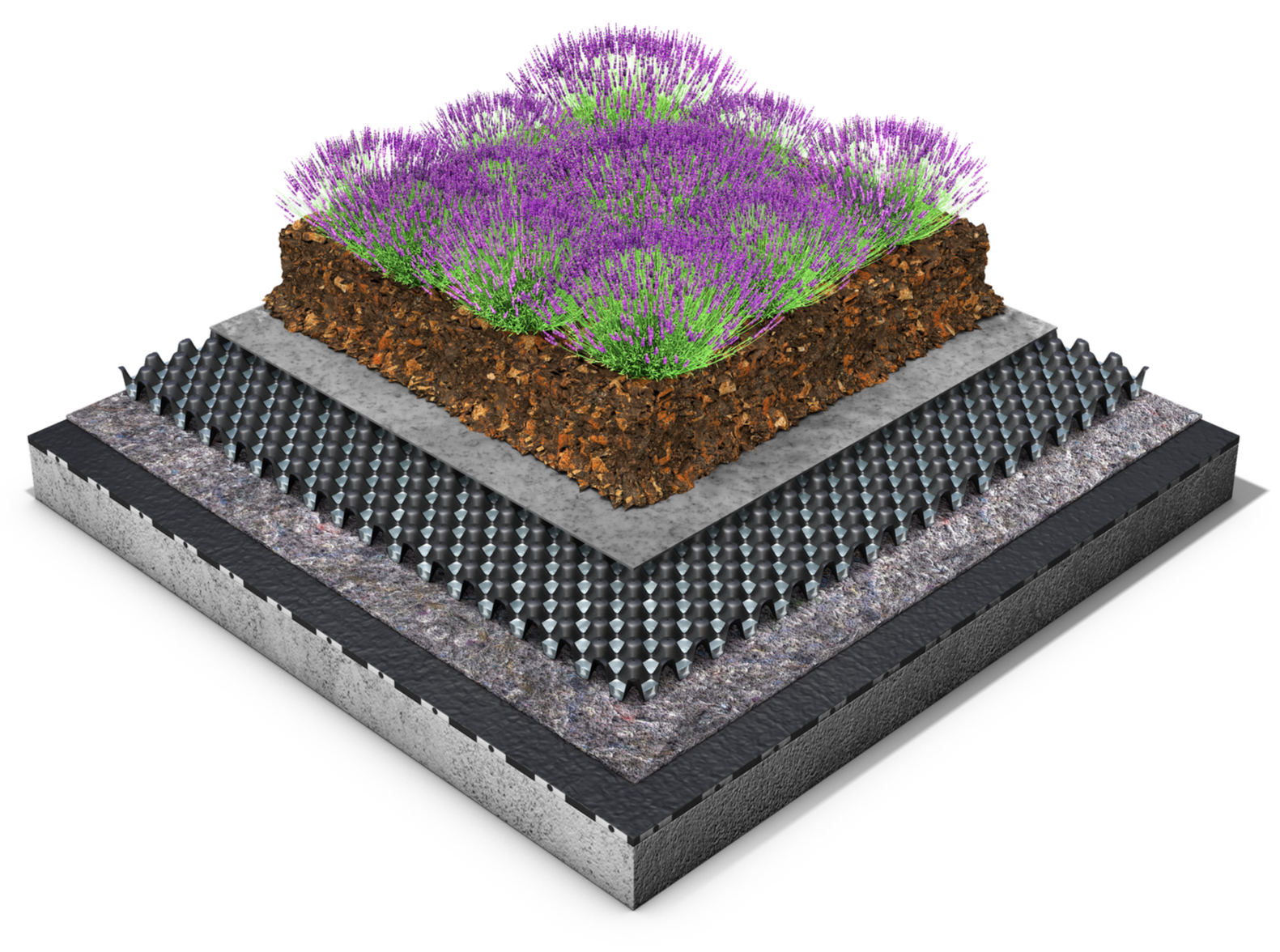

Perennial Garden with FD40

System Buildup

  1. Plant Material

  2. Growing Medium ZinCoblend-SI (≥150 mm)

  3. ZinCo Filter Sheet SF

  4. ZinCo Floradrain FD40

  5. ZinCo Protection Mat SSM45

  6. ZinCo Root Barrier WSF40

  7. Roof Structure & Waterproofing

Technical Data

  • Depth: ≥ 200 mm (8")

  • Water retention capacity: ≥ 95 L/m2

  • Saturated weight: ≥ 240 kg/m2 (49 psf)

  • Slope: 2-5 degrees

Guide Specifications
Data Sheets

Technical Drawings

Planning Guides
A garden with various flowers and plants next to a modern building under a blue sky.
Modern building with large windows and landscaped garden featuring rocks and grass plants.
Roof with a green roof garden with various plants and flowers, wooden house, surrounded by trees.
