SEDUM ROOF

Fixodrain® XD20

The economic and attractive way of green roofing

With a plant palette consisting of hardy, drought tolerant sedum species, this is the green roof system with low cost, simple installation, lightweight and low maintenance requirements. Colourful and long lasting, a green roof system with the perfect mix of low cost and durability.

Features:

  • Compact & Lightweight

  • Low maintenance

  • Only 60-80 mm of growing medium required

  • Flexible planting methods

  • Easy Installation

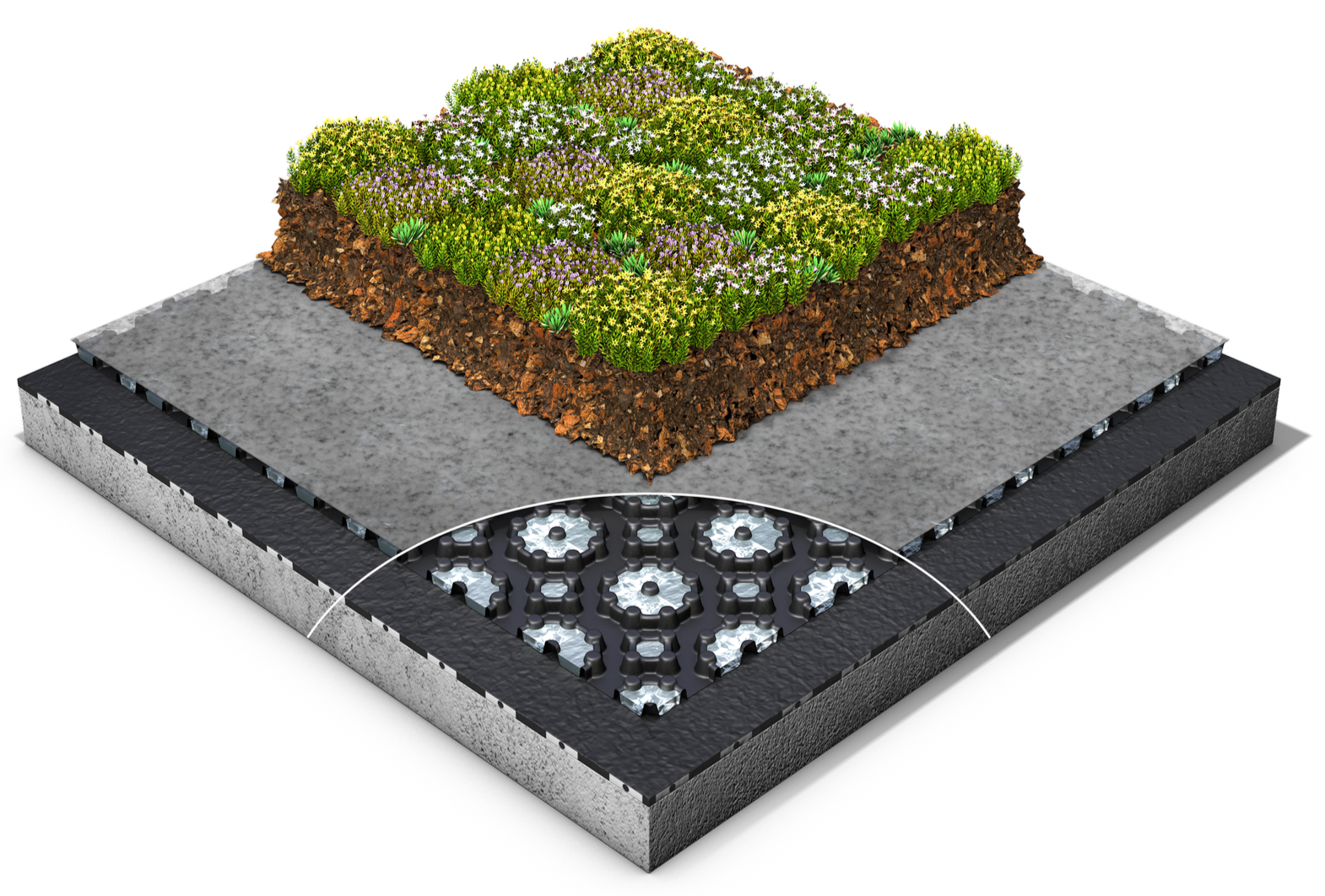

System Buildup

  1. Plant material - Sedum

  2. Growing medium - ZinCoblend-E (60-80 mm)

  3. ZinCo Fixodrain XD20

  4. ZinCo Diffusion Membrane TGV 21

  5. Rigid Insulation (Inverted Roof)

  6. ZinCo Root Barrier WSF40

  7. Roof Structure - Waterproofing

Technical Data

  • Depth: 80 -100 mm (3"-5")

  • Water retention capacity: 37 - 44 L/m2

  • Saturated weight: 102 kg/m2 (21 lbs/ft2)

  • Slope: 2-5 degrees

Technical Drawings
