SEDUM ROOF PLUS (XL)

Floradrain® FD25

The time-tested ecological protection layer

As the name suggests, this green roof system builds on a plant palette dominated by sedum species, but includes various drought tolerant, upright perennials. Increased water retention and soil depth provide for a wider range of plant choices and a more dynamic visual effect.

Features:

  • Lightweight

  • Minimal maintenance

  • 100-120 mm of growing medium required

  • More diverse plant palette

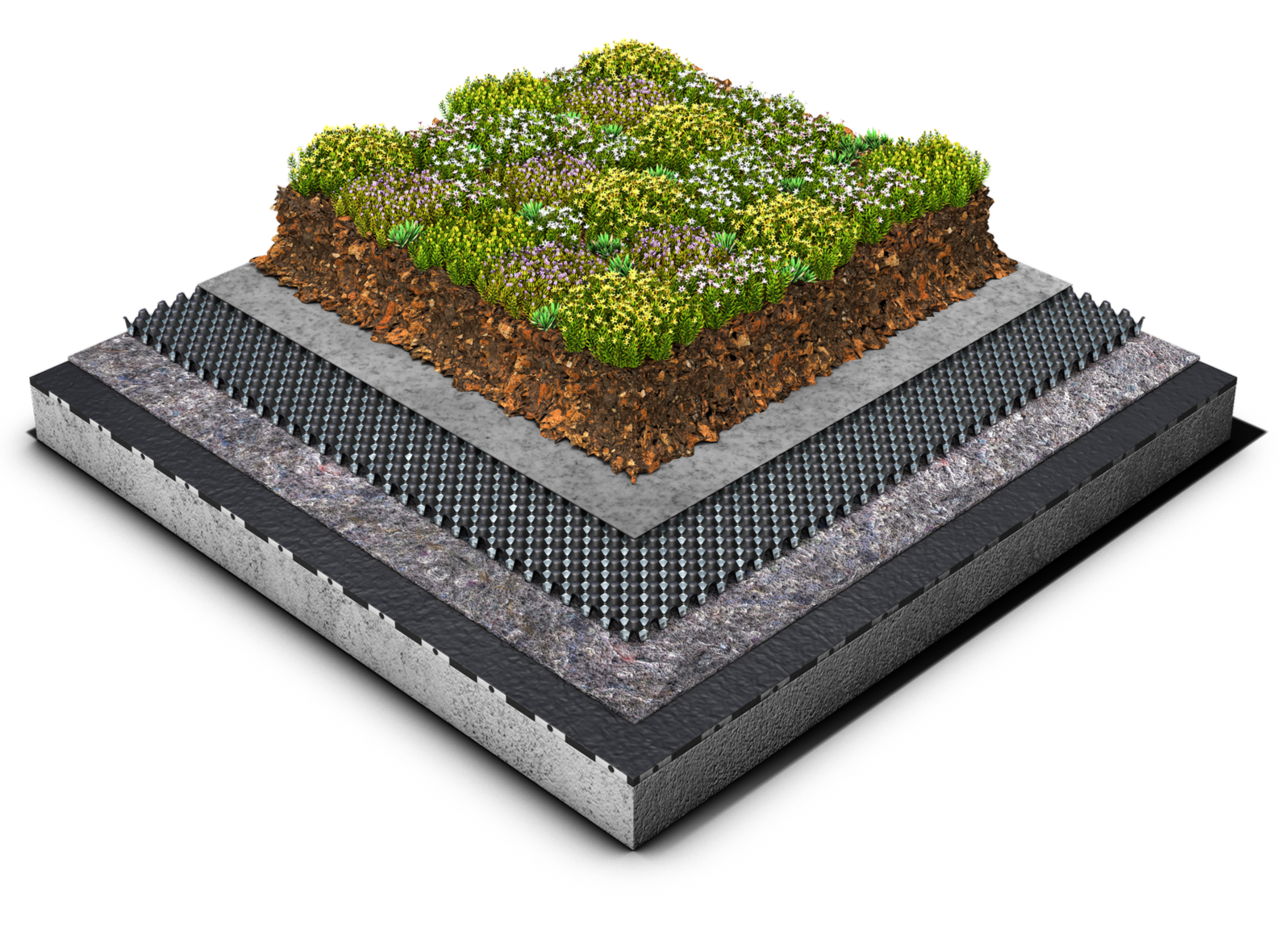

System Buildup

  1. Plant Material-Sedum & Perennials

  2. Growing Medium ZinCoblend-E (>100 mm)

  3. ZinCo Filter Sheet SF

  4. ZinCo Floradrain FD25

  5. ZinCo Protection Mat SSM45

  6. ZinCo Root Barrier WSF40

  7. Roof Structure - Waterproofing

Technical Data

  • Depth: 120 -140 mm - (5"- 6")

  • Water retention capacity: 44 - 51 L/m2

  • Saturated weight: >130 kg/m2 (27 psf)

  • Slope: 2-5 degrees

Guide Specifications
Data Sheets

Technical Drawings

Planning Guides
