WALKWAYS & PATIOS ON BEDDING

Floradrain® FD25 and FD40

Modern urban courtyard with paved walkway, small grass patches, trees, and apartment building in the background.

Walkways on bedding

High capacity for water retention, ideal if you want to combine paving slabs with landscaping.

Features:

  • Floradrain® FD25 or FD40 systems provide the water retention, drainage capabilities and resistance to compression needed for this type of walkway

  • Has the versatility to either hold water back or let it through

  • Multiple options for hard surfacing possible

Diagram of a tire cross-section showing different layers from top to bottom: tread, belt, carcass, ply, cushion, and inner liner.

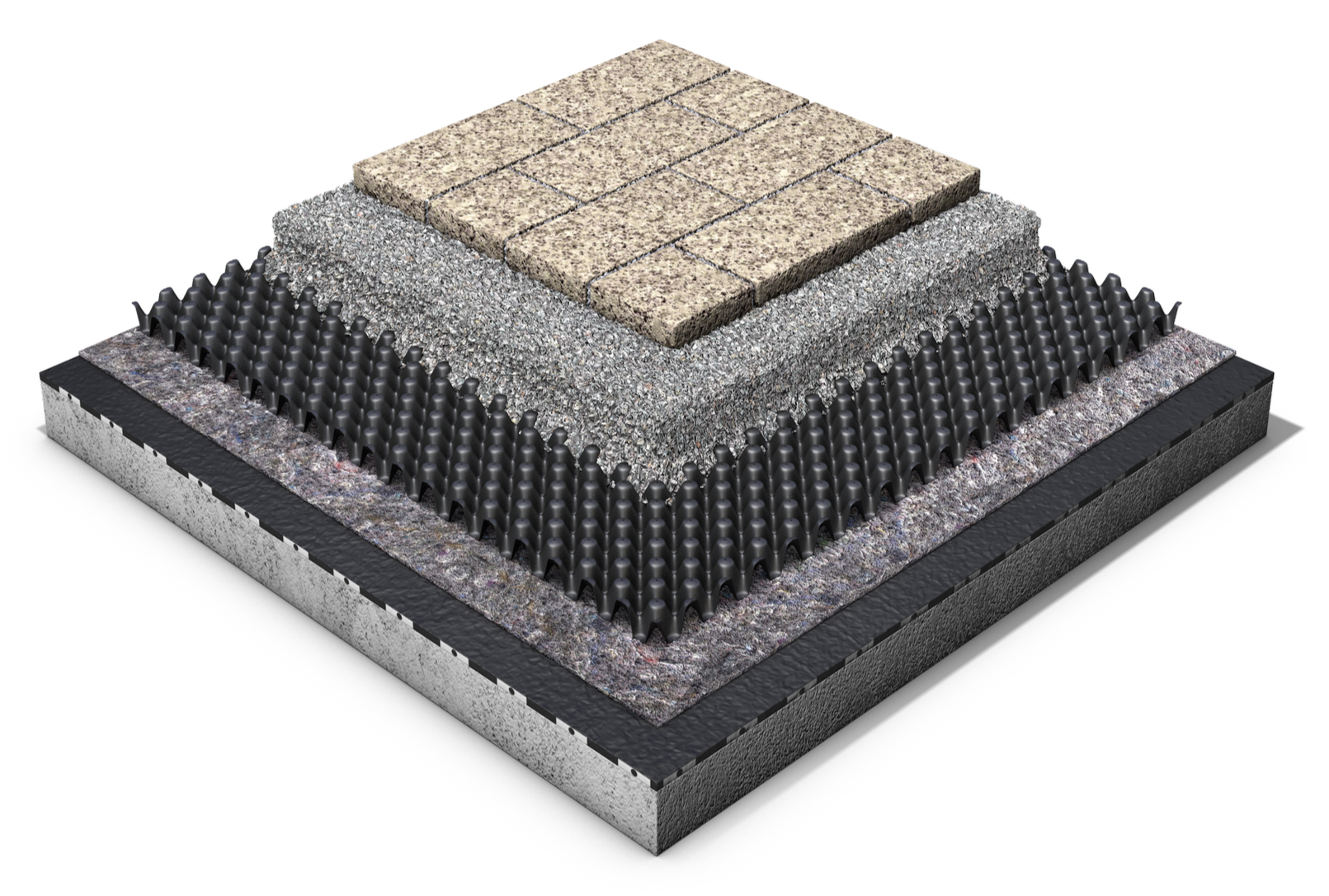

System Buildup

  1. Hard Surfacing

  2. Bedding Material

  3. ZinCo Floradrain FD25/FD40

  4. ZinCo Diffusion Membrane TGV21

  5. Rigid Insulation

  6. Roof Structure & Waterproofing

Technical Data

  • Depth: ≥ 100 mm (4")

  • Water retention capacity: N/A

  • Saturated weight: ≥ 105 kg/m2 (22 psf)

  • Slope: 2-5 degrees

Guide Specifications
Data Sheets

Technical Drawings

Planning Guides
Modern urban courtyard with high-rise buildings, glass balconies, a tree, and landscaped greenery.
Urban botanical garden with trees, shrubs, and flowering plants, surrounded by a metal fence, with black metal benches and a small black metal table on a paved stone patio, in a city setting with apartment buildings in the background.

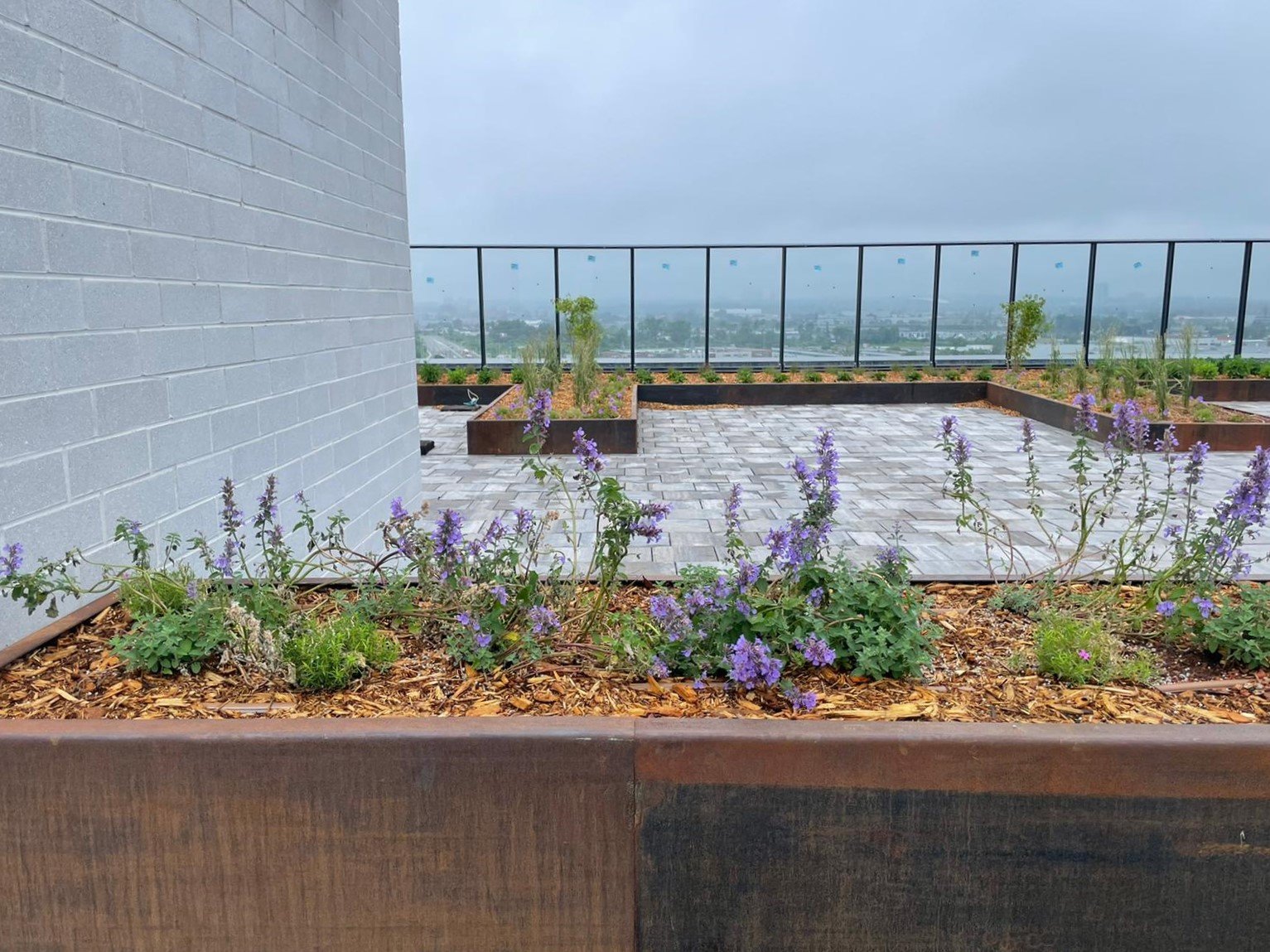

A rooftop garden with purple flowers in wooden planters, a gray tiled floor, a gray brick wall, and a glass railing view of a cityscape on a cloudy day.
