10 - 25 DEGREES

Floraset® FS 75

Modern building with slanted, black and gray tiled towers and lower sections with green moss-covered roofs, large glass windows, and wood trim.

For gradients up to 25 degrees

An attractive way to install a green roof on a sloping roof.

Features

  • Ideal for 10-25 degree slopes

  • Floraset® FS 75 provides compact and secure soil retention

  • Fast and simple installation

  • Low growing sedum species

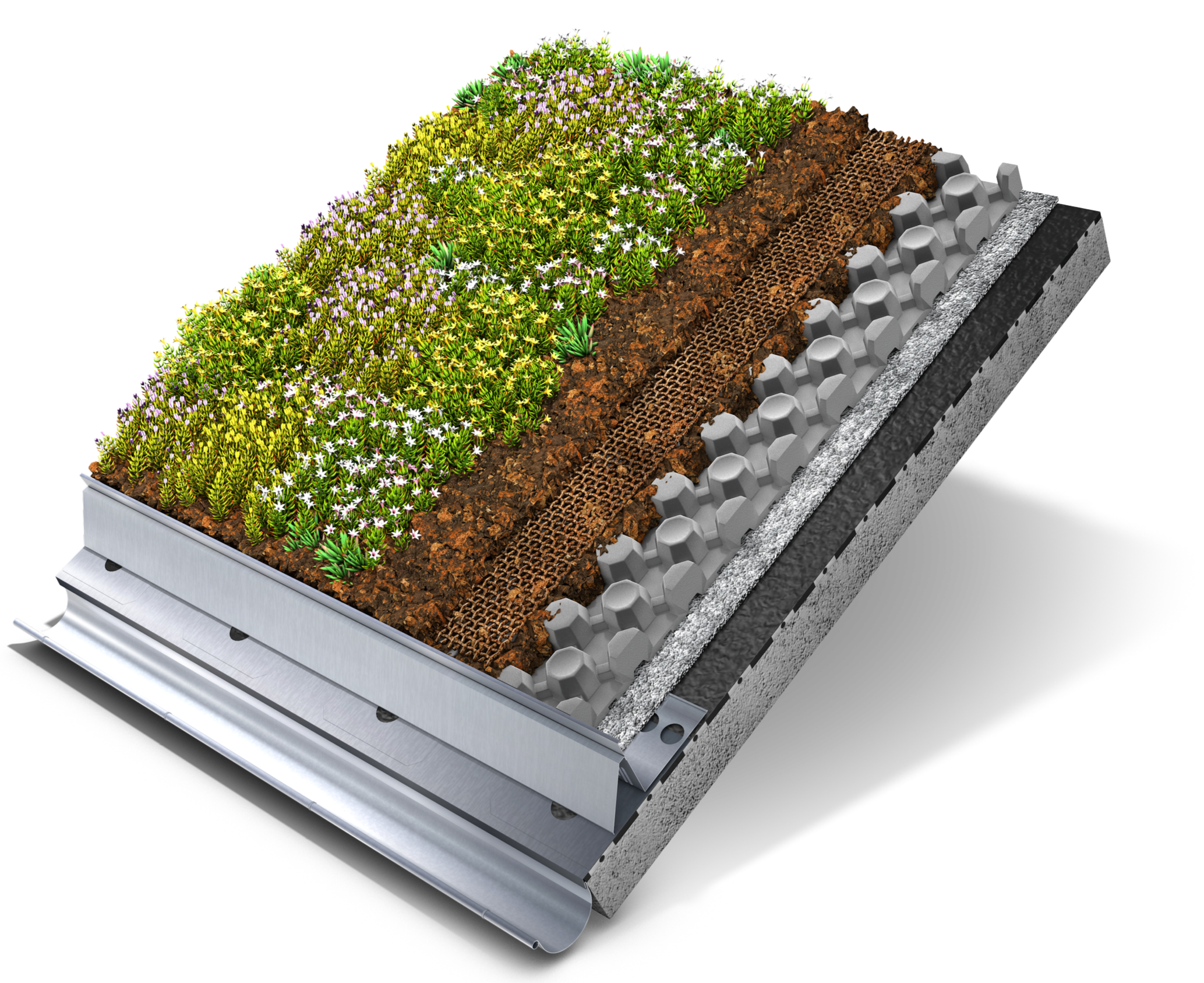

Sloped Green Roof with FS50/75

System Buildup

  1. Plant Material

  2. ZinCo Anti-Erosion Mesh JEG (80-100 mm)

  3. Growing Medium ZinCoblend-E

  4. ZinCo Floraset FS75

  5. ZinCo Protection Mat BM6

  6. ZinCo Root Barrier WSF40

  7. Roof Structure - Waterproofing

Technical Data

  • Depth: 130 mm (5.5")

  • Water retention capacity: ≥ 143 L/m2

  • Saturated weight: 120 kg/m2 ( 25 psf)

  • Slope: 10-25 degrees

Guide Specifications
Data Sheets

Technical Drawings

Planning Guides
