WALKWAYS & PATIOS ON PEDESTALS

Elefeet®

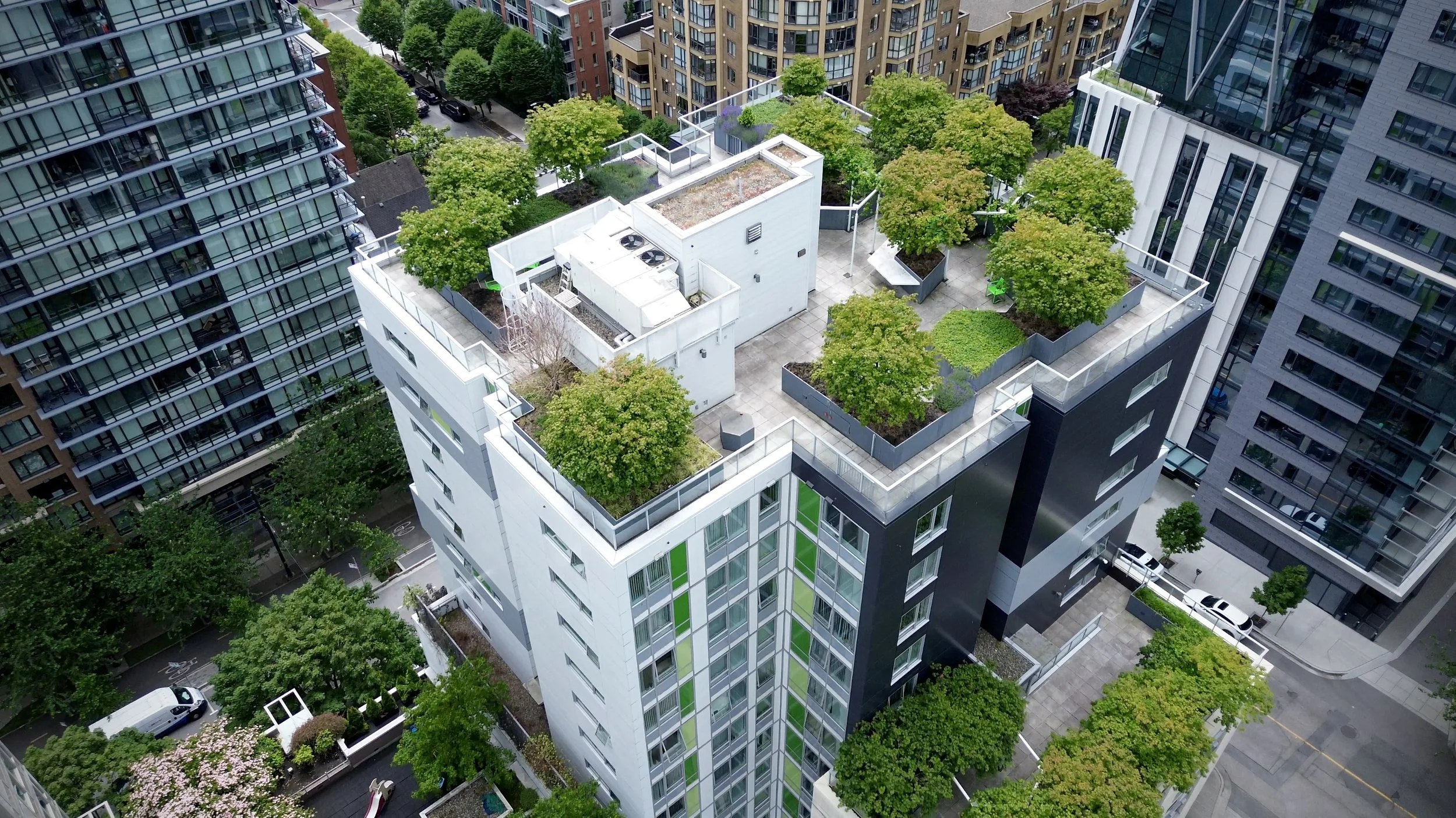

Aerial view of a rooftop garden on a modern building in an urban cityscape with high-rise buildings and city skyline in the background.

Pedestal for light weight and adjustability

Ideal for roofs with a low load-bearing capacity, unable to withstand the weight of a gravel layer.

Features:

  • ZinCo Elefeet® adjustable pedestal eliminates the need for gravel

  • Drains water quickly and easily and provides good aeration

  • Can be adjusted to accommodate for drainage pipes, cables or hoses

  • Height range: 25 - 400 mm

  • Slope adjustable to 4.5 degrees (8%)

  • Used for roof pavers and wooden decks

Diagram of a swimming pool with a cross-sectional view showing pool structure, water level, and filtration system.

System Buildup

  1. Roof Paver

  2. ZinCo Elefeet H25-H140

  3. ZinCo Diffusion Membrane TGV21

  4. Rigid Insulation

  5. Roof Structure & Waterproofing

Technical Data

  • Depth: 25 - 400 mm

  • Water retention capacity: N/A

  • Saturated weight: N/A

  • Slope: 2-5 degrees

Guide Specifications
Data Sheets

Technical Drawings

Planning Guides
